SHADOW

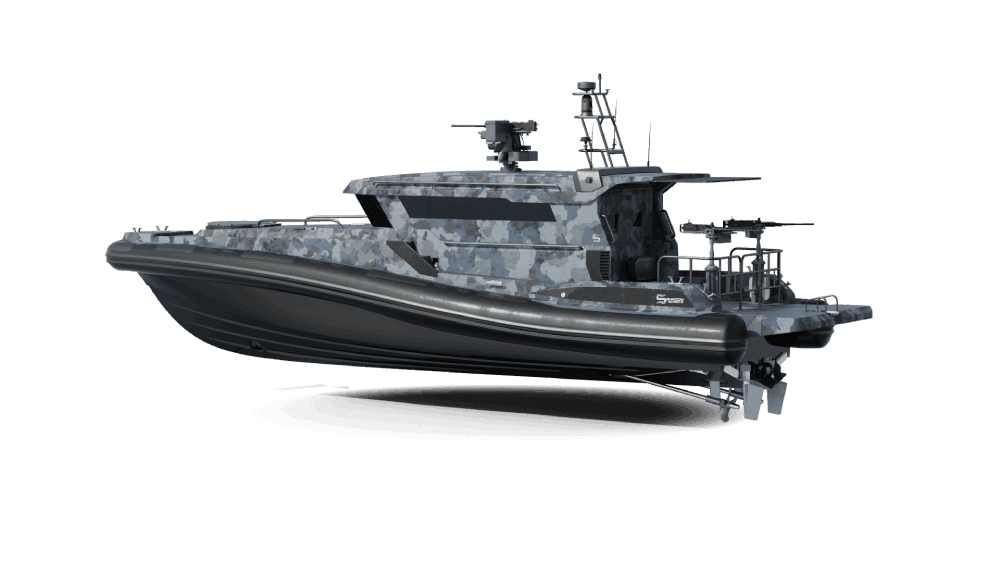

MILITARY 47 Inboard
A mission-ready platform built for defense operations, equipped with powerful options of inboard engines and with customizable weapon systems.
14.50 m
Lmax
37.5+ knots
LTop Speed
250 L
LWater Tank
1400 L
LFuel Tank
Range 230 NM
Lat 100%
Engine Power
12
LPassengers
|
This model comes with two inboard engines in the option of:
CATERPILLAR C7.1 2X373 kW+ ZF 400V - total Maximum Recommended Power 746 kW CUMMINS QSC 8.3 S.W. 2X441 kW+ ZF 400V - total Maximum Recommended Power 882 kW At the customer’s request, other engines can also be installed. |
|||
|---|---|---|---|
| Performance with Caterpillar | |||
| Maximum Speed | 35+ knots | ||
| Range at 100% Engine Power 35 knots | 230 NM | ||
| Range at 80% Engine Power 29 knots | 245 NM | ||
| Range at 65% Engine Power (Cruising Speed) 26 knots | 270 NM | ||
| Performance with Cummins | |||
| Maximum Speed | 37.5+ knots | ||
| Range at 100% Engine Power 37.5+ knots | 230 NM | ||
| Range at 80% Engine Power 29 knots | 243 NM | ||
| Range at 65% Engine Power (Cruising Speed) 26 knots | 270 NM | ||
| Project Category-Certified Option | |||
| EU RCD category |
A »Ocean« B »Offshore« |
||
| MODUL | B+F | ||
| Sea State | |||
|
Category “A” - “Ocean” Navigation in open sea conditions where wind strength exceeds 8 Bf (Beaufort scale of wind strength) and significant wave height exceeds 4 meters. Such vessels are fully self-sufficient. |
|||
|
Category “B” - “Offshore” Navigation in open sea conditions where wind strength reaches up to and includes 8 Bf, and significant wave height reaches up to and includes 4 meters. |
|||
