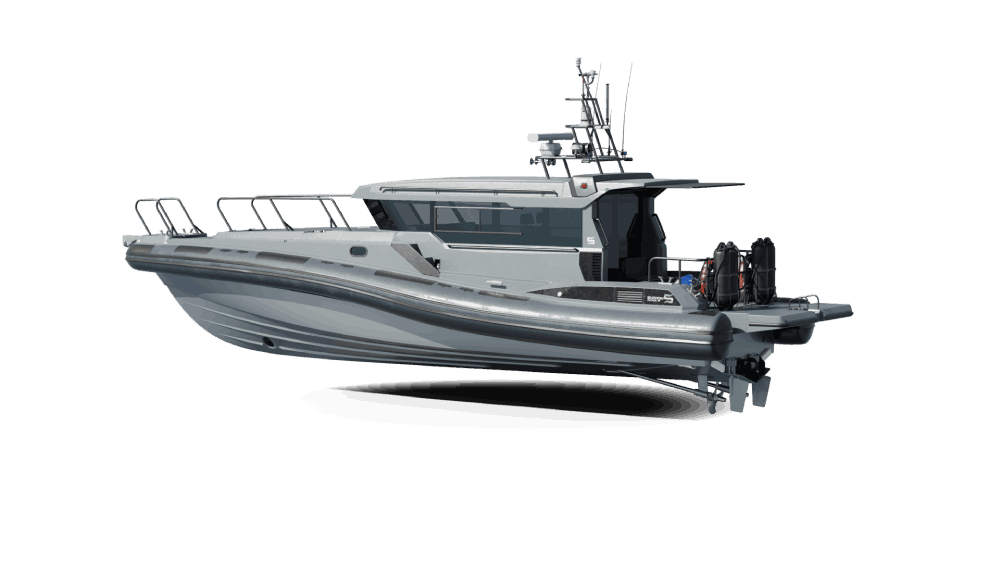

Shadow PATROL 47 Inboard Series Side View

Shadow PATROL 47 Inboard Logo Mark SHADOW

PATROL 47 Inboard

Tough and reliable, ready for long-range patrol missions with advanced engine, control and comfort onboard.

14.50 m
Lmax

37.5+ knots
LTop Speed

250 L
LWater Tank

1400 L
LFuel Tank

Range 230 NM
Lat 100%
Engine Power

12
LPassengers



This model comes with two inboard engines in the option of:
CATERPILLAR C7.1 2X373 kW+ ZF 400V - total Maximum Recommended Power 746 kW
CUMMINS QSC 8.3 S.W. 2X441 kW+ ZF 400V - total Maximum Recommended Power 882 kW

At the customer’s request, other engines can also be installed.
Performance with Caterpillar
Maximum Speed 35+ knots
Range at 100% Engine Power 35 knots 230 NM
Range at 80% Engine Power 29 knots 245 NM
Range at 65% Engine Power (Cruising Speed) 26 knots 270 NM
Performance with Cummins
Maximum Speed 37.5+ knots
Range at 100% Engine Power 37.5+ knots 230 NM
Range at 80% Engine Power 29 knots 243 NM
Range at 65% Engine Power (Cruising Speed) 26 knots 270 NM
Project Category-Certified Option
EU RCD category A »Ocean«
B »Offshore«
MODUL B+F
Sea State
Category “A” - “Ocean”
Navigation in open sea conditions where wind strength exceeds 8 Bf (Beaufort scale of wind strength) and significant wave height exceeds 4 meters. Such vessels are fully self-sufficient.
Category “B” - “Offshore”
Navigation in open sea conditions where wind strength reaches up to and includes 8 Bf, and significant wave height reaches up to and includes 4 meters.

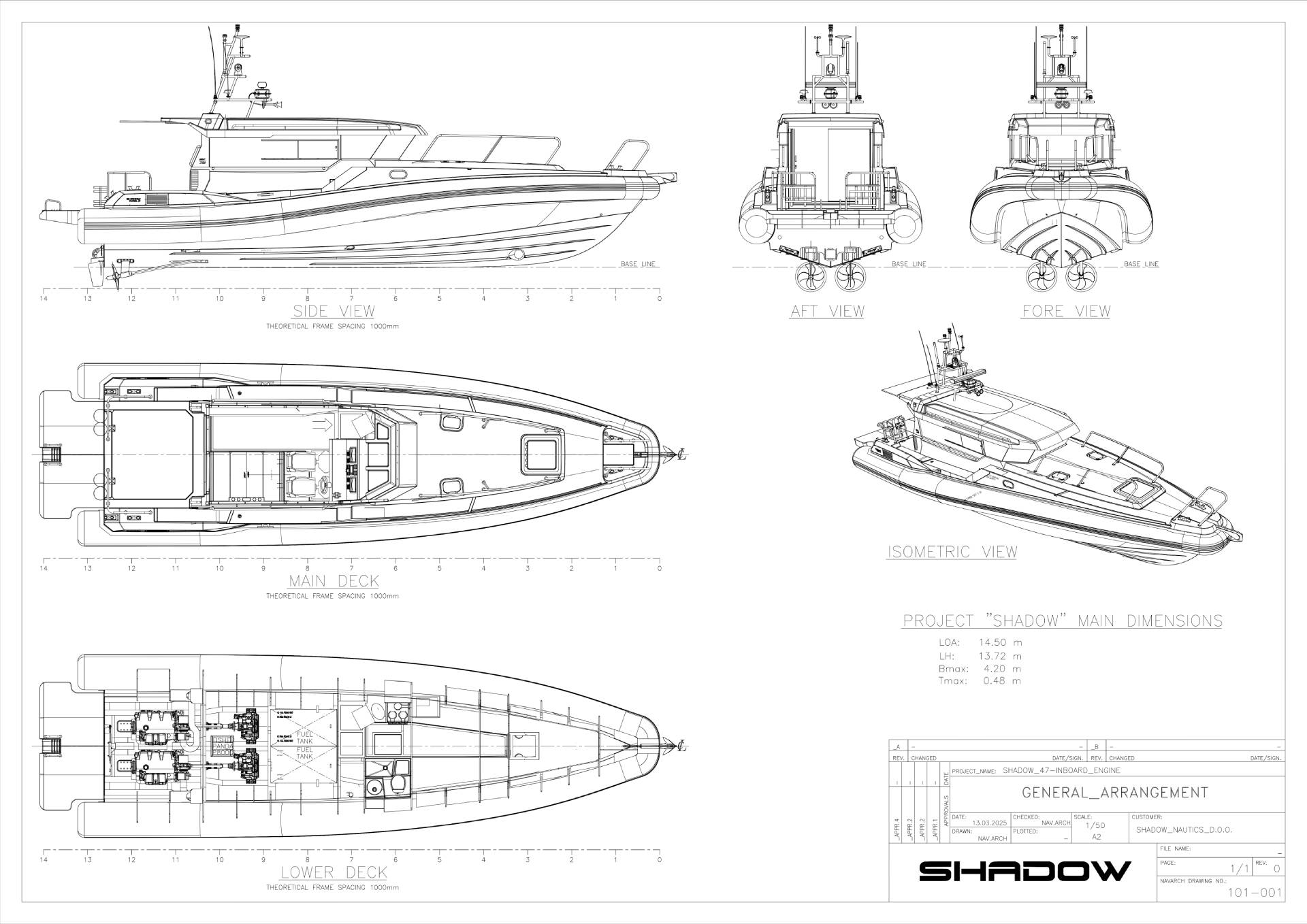

Design step 4
HULL and SUPERSTRUCTURE
  • Proven design, Deep-V hull
  • Glass reinforced polyester (GRP) Hull and Deck structure reinforced with Kevlar
  • Built by Vacuum Infusion process with newest technologies
  • Class notation according to CRS Rules and EU directive 53/2013/EU
  • 2 Watertight compartments with separate bilge system
  • Standard gel coat (RAL color of choice) or full paint
  • Anti-slip deck
TUBE
  • O-Shape air tube made of ORCA 1670 Decitex Hypalon/Neoprene
  • Weather, chemical, abrasion and UV resistant
  • Divided into 10 separate chambers with inflation, deflation and overpressure valves per chamber
  • 2 Rubber strakes fender bonded to the outer surface of the tube over the full lenght.
  • Anti-slide pads fitted along the top of the tube
  • Option full lenght Life-lines on the outer side of the tube
  • Repair kit included
  • Protective covers for the valves and overpressure valves made of the same material as the tube
ENGINE & PROPULSION
  • 2x Caterpillar C7.1 373 or 2x Cummins QSC 8.3 441 (optional)
  • V-drive with shaft - ZF 400V reductor with marine electronic propulsion control
  • Underwater exhaust (below water level)
  • Hydraulic steering with 2 rudders
  • Zip wake Dynamic trim control system or Trim tabs control system
  • 6 kW bow thruster – 185 mm
  • 6.5 kW stern thruster – twin prop – 185 mm
  • Cathodic protection
  • 2x Racor separator system
  • 2x engine room blowers
ELECTRICAL SYSTEM
  • Fischer Panda 6.4 kW generator (230V/50Hz)
  • TBS electronics Powersine combi inverter 12V-220V/1600W with battery charger 60 A
  • 12V DC fully insulated two-wire system
  • 230V shore power 32A
  • 2x engine alternators
  • Sealed AGM or GEL batteries
  • Marine cables in watertight deck piping
  • Lights: nav, search, work, console, interior/exterior, strobe
OUTFITTINGS
  • Hard top aft
  • Collapsible stainless T-Top, fabric bimini roof
  • Anchor system, 2x bow, 4x stern, 2x side bollards
  • Bow locker, anchor + windlass + inox chain
  • 4x Stainless steel lifting eyes
  • 2x Gun posts (FWD, AFT)
  • Inserts for bulletproof panel installation
  • Stern platform with swim ladder (optional hydraulic)
  • Stern rail with fender holders
AUXILIARY SYSTEMS
  • 4x Fire extinguishers + fire suppression system
  • 4x Electric bilge pumps
  • 1x Emergency bilge/fire pump (220V)
  • 1x Manual bilge pump
HEATING, VENTILATION & A/C
  • 2x Dometic 16,000 BTU A/C units
  • 1x Webasto EVO TOP 5 heater
  • 1x Defroster system
  • 1x Cabin/saloon ventilation
NAVIGATION & COMMUNICATION SYSTEM
  • 3x SIMRAD NSS EVO3S 16" displays
  • 1x Raymarine Axiom Pro 12"
  • SIMRAD Radar HALO 3004
  • SIMRAD IS42, AP44, WR10, GS-25
  • SIMRAD WS310, SS60 xsonic, TotalScan 3-in-1
  • SIMRAD VHF RS40-B + GPS-500
  • SIMRAD RF-25N, IR camera aft, FLIR M400XR
  • Compass, rudder indicator, joystick control
  • Spotlight, FIREBOY detection system
  • Anchor winch controller
  • SIMRAD IS42, SIMARINE Pico multifunctional display
  • NAVIONICS card, hailer, horn, 2x CCTV
ARMAMENT FOR SHADOW MILITARY 47 OPTIONS
  • Roof: 1x Kongsberg SEA PROTECTOR NAVAL RS4 12.7 RWS
  • Aft: 2x Kongsberg Browning M2 or Dillon Aero M134D-M
  • Bow: 1x Dillon Aero M134D-M with CEV system
  • Configurable based on client needs & vessel capability
EQUIPMENT
  • Cabins for multi-day sea stays
  • 2x Gramar shock seats
  • 4G TP-Link dual SIM router + antenna
  • 2x LED TV 26" + splitter
  • Marine oven + 75L fridge
  • Electric toilet + shower area
  • FM Radio Hertz HMR20
  • 4x Hertz 6.5” 150W speakers
  • Window blinds + external cover
OPTION LIST
  • Seakeeper3 Gyro stabilizer
  • Hydraulic stern platform
  • Watermaker HP 150 l/h
  • Hydraulic gangway
  • Teak deck
  • Custom options per client request
