SHADOW

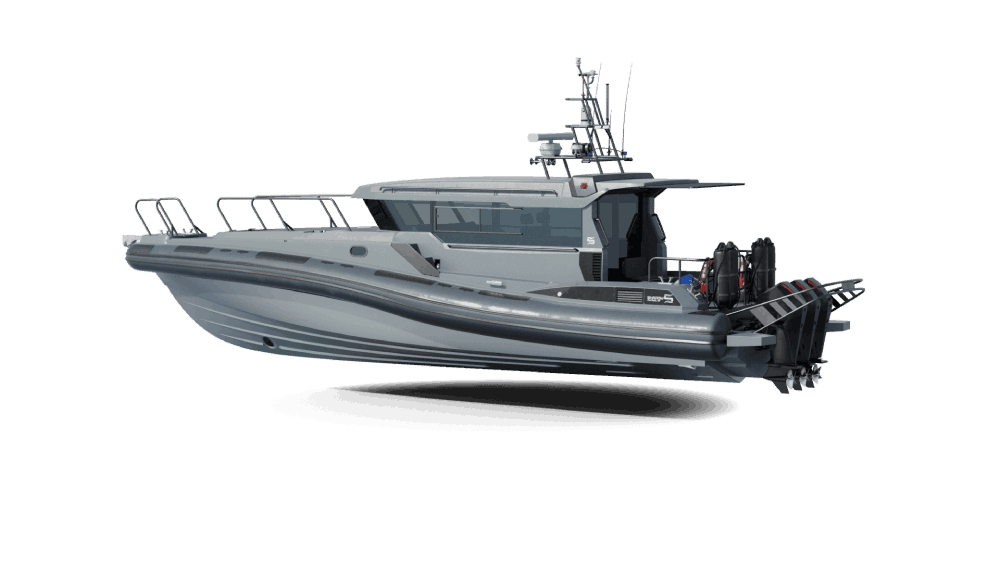

PATROL 47 Outboard
A mission-ready platform built for defense operations, equipped with powerful options of inboard engines and with customizable weapon systems.
14.50 m
Lmax
60 knots
LMax Top Speed
(varies by models)
250 L
LWater Tank
1200 L
LFuel Tank
Range 122-152 NM
Lat 100%
Engines Powers
(varies by models)
12
LPassengers
|
This model comes with various outboard engines in the option of: MERCURY 2 x 600hp-V12, MERCURY 3 x 600hp-V12, 3 x 400hp-V10, 3 x 350hp-V10 YAMAHA 3 x 450hp-V8, 3 x 350hp-V6 HONDA 3 x 350hp-V8 At the customer’s request, other engines can also be installed. |
||||
|---|---|---|---|---|
| Engine Option | Speed (kts) | RPM | Consum. (l/h) | Range (NM) |
| Performance with Mercury 3 x 600hp-V12 | ||||
| 100% Engine Power | 60 | 6000 | 579 | 124 |
| 80% Engine Power | 49 | 5000 | 339 | 173 |
| 65% Engine Power (Cruising Speed) | 40 | 4000 | 255 | 188 |
| Performance with Mercury 3 x 400hp-V10 | ||||
| 100% Engine Power | 50 | 6000 | 430 | 139 |
| 80% Engine Power | 42 | 5000 | 220 | 229 |
| 65% Engine Power (Cruising Speed) | 35 | 4000 | 130 | 323 |
| Performance with Mercury 3 x 350hp-V10 | ||||
| 100% Engine Power | 43 | 6000 | 421 | 122 |
| 80% Engine Power | 38 | 5000 | 208 | 219 |
| 65% Engine Power (Cruising Speed) | 31 | 4000 | 115 | 323 |
| Performance with Yamaha 3 x 450hp-V8 | ||||
| 100% Engine Power | 53 | 6000 | 430 | 148 |
| 80% Engine Power | 43 | 5000 | 221 | 233 |
| 65% Engine Power (Cruising Speed) | 36 | 4000 | 128 | 337 |
| Performance with Yamaha 3 x 350hp-V6 | ||||
| 100% Engine Power | 43 | 6000 | 340 | 148 |
| 80% Engine Power | 38 | 5000 | 205 | 223 |
| 65% Engine Power (Cruising Speed) | 30 | 4000 | 114 | 316 |
| Performance with Honda 3 x 350hp-V8 | ||||
| 100% Engine Power | 43 | 6000 | 349 | 148 |
| 80% Engine Power | 37 | 5000 | 236 | 188 |
| 65% Engine Power (Cruising Speed) | 30 | 4000 | 112 | 321 |
| Project Category-Certified Option | ||||
| EU RCD category | A »Ocean« B »Offshore« |
|||
| MODUL | B+F | |||
| Sea State | ||||
|
Category “A” - “Ocean” Navigation in open sea conditions where wind strength exceeds 8 Bf (Beaufort scale of wind strength) and significant wave height exceeds 4 meters. Such vessels are fully self-sufficient. |
||||
|
Category “B” - “Offshore” Navigation in open sea conditions where wind strength reaches up to and includes 8 Bf, and significant wave height reaches up to and includes 4 meters. |
||||
HULL and SUPERSTRUCTURE
- Proven design, Deep-V hull
- Glass reinforced polyester (GRP) Hull and Deck structure reinforced with Kevlar
- Built by Vacuum Infusion process with newest technologies
- Class notation according to CRS Rules and EU directive 53/2013/EU
- 2 Watertight compartments with separate bilge system
- Standard gel coat (RAL color of choice) or full paint
- Anti-slip deck
TUBE
- O-Shape air tube made of ORCA 1670 Decitex Hypalon/Neoprene
- Weather, chemical, abrasion and UV resistant
- Divided into 10 separate chambers with inflation, deflation and overpressure valves per chamber
- 2 Rubber strakes fender bonded to the outer surface of the tube over the full lenght.
- Anti-slide pads fitted along the top of the tube
- Option full lenght Life-lines on the outer side of the tube
- Repair kit included
- Protective covers for the valves and overpressure valves made of the same material as the tube
ENGINE & PROPULSION
- 2x Caterpillar C7.1 373 or 2x Cummins QSC 8.3 441 (optional)
- V-drive with shaft - ZF 400V reductor with marine electronic propulsion control
- Underwater exhaust (below water level)
- Hydraulic steering with 2 rudders
- Zip wake Dynamic trim control system or Trim tabs control system
- 6 kW bow thruster – 185 mm
- 6.5 kW stern thruster – twin prop – 185 mm
- Cathodic protection
- 2x Racor separator system
- 2x engine room blowers
ELECTRICAL SYSTEM
- Fischer Panda 6.4 kW generator (230V/50Hz)
- TBS electronics Powersine combi inverter 12V-220V/1600W with battery charger 60 A
- 12V DC fully insulated two-wire system
- 230V shore power 32A
- 2x engine alternators
- Sealed AGM or GEL batteries
- Marine cables in watertight deck piping
- Lights: nav, search, work, console, interior/exterior, strobe
OUTFITTINGS
- Hard top aft
- Collapsible stainless T-Top, fabric bimini roof
- Anchor system, 2x bow, 4x stern, 2x side bollards
- Bow locker, anchor + windlass + inox chain
- 4x Stainless steel lifting eyes
- 2x Gun posts (FWD, AFT)
- Inserts for bulletproof panel installation
- Stern platform with swim ladder (optional hydraulic)
- Stern rail with fender holders
AUXILIARY SYSTEMS
- 4x Fire extinguishers + fire suppression system
- 4x Electric bilge pumps
- 1x Emergency bilge/fire pump (220V)
- 1x Manual bilge pump
HEATING, VENTILATION & A/C
- 2x Dometic 16,000 BTU A/C units
- 1x Webasto EVO TOP 5 heater
- 1x Defroster system
- 1x Cabin/saloon ventilation
NAVIGATION & COMMUNICATION SYSTEM
- 3x SIMRAD NSS EVO3S 16" displays
- 1x Raymarine Axiom Pro 12"
- SIMRAD Radar HALO 3004
- SIMRAD IS42, AP44, WR10, GS-25
- SIMRAD WS310, SS60 xsonic, TotalScan 3-in-1
- SIMRAD VHF RS40-B + GPS-500
- SIMRAD RF-25N, IR camera aft, FLIR M400XR
- Compass, rudder indicator, joystick control
- Spotlight, FIREBOY detection system
- Anchor winch controller
- SIMRAD IS42, SIMARINE Pico multifunctional display
- NAVIONICS card, hailer, horn, 2x CCTV
ARMAMENT FOR SHADOW MILITARY 47 OPTIONS
- Roof: 1x Kongsberg SEA PROTECTOR NAVAL RS4 12.7 RWS
- Aft: 2x Kongsberg Browning M2 or Dillon Aero M134D-M
- Bow: 1x Dillon Aero M134D-M with CEV system
- Configurable based on client needs & vessel capability
EQUIPMENT
- Cabins for multi-day sea stays
- 2x Gramar shock seats
- 4G TP-Link dual SIM router + antenna
- 2x LED TV 26" + splitter
- Marine oven + 75L fridge
- Electric toilet + shower area
- FM Radio Hertz HMR20
- 4x Hertz 6.5” 150W speakers
- Window blinds + external cover
OPTION LIST
- Seakeeper3 Gyro stabilizer
- Hydraulic stern platform
- Watermaker HP 150 l/h
- Hydraulic gangway
- Teak deck
- Custom options per client request
